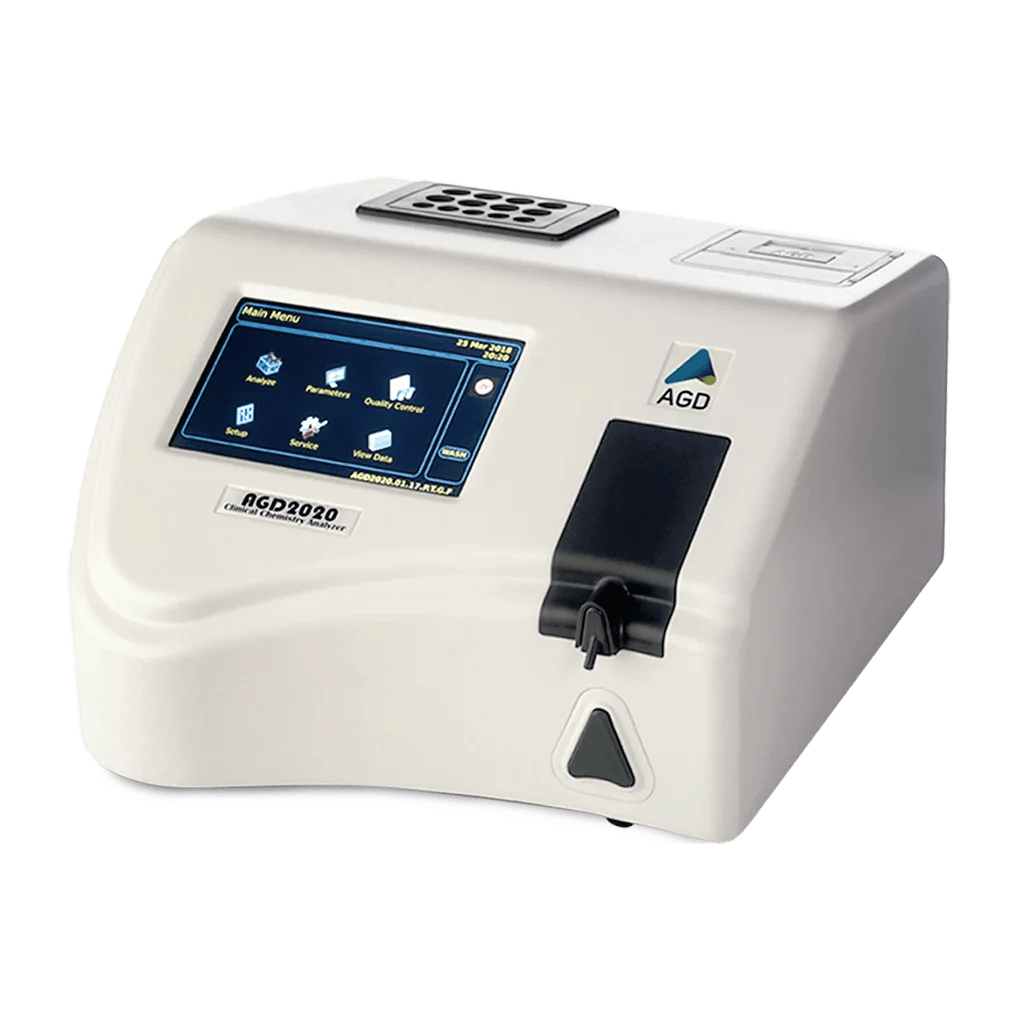

AGD 2020 Semi-Automatic Clinical Chemistry Analyzer
Compact and versatile, suited for small to medium labs or as backup in larger settings
AGD Biomedicals Pvt. Ltd.
Display & Interface:
7' graphic resistive touchscreen color LCD (800×480 px)
Built-in 2″ graphic thermal printer (can be turned on/off)
.
USB ports for keyboard/mouse
.
Performance & Optics:
Supports Absorbance, End-point, Kinetic, Fixed-time, Endpoint with Sample Blank, Coagulation assays
.
Wavelength filters: 340, 405, 450, 505, 546, 578, 630, 670 nm (8 filters
.
Absorbance: –0.1 to 3.000 Abs
.
Flow cell volume: 18 µL (some variants: 18/32 µL)
.
Aspiration volume: 300 µL–1000 µL (0.2–1.0 mL) via peristaltic pump
Semi-micro cuvettes, ~2.5 mL volume
.
Temperature & Calibration:
Peltier-based temperature control at 25 °C, 30 °C, and 37 °C
.
Calibration: linear, multipoint, non-linear up to 6 standards, with interpolation options (cubic spline, exponential, parabola)
.
Quality Control & Data Storage:
3-level QC with Levey–Jennings (L–J) plots and daily/monthly tracking
AGD Biomedicals Pvt. Ltd.
Memory: ~196 programs and 5000 reaction-curve-stored test records
.
Physical & Power Specifications:
Dimensions: 360 × 355 × 170 mm; Weight: ~6.5–6.6 kg
.
Power: 50 W, 100–240 VAC, 50/60 Hz
Operating temp: 15–40 °C, humidity up to 85%
.
Optional in-built incubator (8 test tubes + 5 coag tubes) and battery backup
.
AGD 2010 Semi-Automatic Clinical Chemistry Analyzer
Slightly smaller display (5″) with touchscreen color interface
.
Supports similar assay types and QC setup (tri-level L–J plots)
sixthlabafrica.com
.
Memory capacity of ~245 programs and 20, 000 test records
.
Dimensions: 315 × 290 × 175 mm; Weight: ~6.5 kg; Power consumption: ~50 W
Compact and versatile, suited for small to medium labs or as backup in larger settings
AGD Biomedicals Pvt. Ltd.
Display & Interface:
7' graphic resistive touchscreen color LCD (800×480 px)
Built-in 2″ graphic thermal printer (can be turned on/off)
.
USB ports for keyboard/mouse
.
Performance & Optics:
Supports Absorbance, End-point, Kinetic, Fixed-time, Endpoint with Sample Blank, Coagulation assays
.
Wavelength filters: 340, 405, 450, 505, 546, 578, 630, 670 nm (8 filters
.
Absorbance: –0.1 to 3.000 Abs
.
Flow cell volume: 18 µL (some variants: 18/32 µL)
.
Aspiration volume: 300 µL–1000 µL (0.2–1.0 mL) via peristaltic pump
Semi-micro cuvettes, ~2.5 mL volume
.
Temperature & Calibration:
Peltier-based temperature control at 25 °C, 30 °C, and 37 °C
.
Calibration: linear, multipoint, non-linear up to 6 standards, with interpolation options (cubic spline, exponential, parabola)
.
Quality Control & Data Storage:
3-level QC with Levey–Jennings (L–J) plots and daily/monthly tracking
AGD Biomedicals Pvt. Ltd.
Memory: ~196 programs and 5000 reaction-curve-stored test records
.
Physical & Power Specifications:
Dimensions: 360 × 355 × 170 mm; Weight: ~6.5–6.6 kg
.
Power: 50 W, 100–240 VAC, 50/60 Hz
Operating temp: 15–40 °C, humidity up to 85%
.
Optional in-built incubator (8 test tubes + 5 coag tubes) and battery backup
.
AGD 2010 Semi-Automatic Clinical Chemistry Analyzer
Slightly smaller display (5″) with touchscreen color interface
.
Supports similar assay types and QC setup (tri-level L–J plots)
sixthlabafrica.com
.
Memory capacity of ~245 programs and 20, 000 test records
.
Dimensions: 315 × 290 × 175 mm; Weight: ~6.5 kg; Power consumption: ~50 W
